WS85 Structure Polyurethane Screen Mesh Plate MDI Material + Anti Blocking Surface

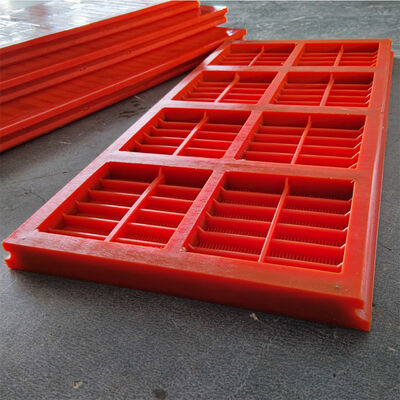

Ampliación de imagen : WS85 Structure Polyurethane Screen Mesh Plate MDI Material + Anti Blocking Surface

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	CHINA HUATAO
Certificación:	ISO9001,CE,SGS etc.
Número de modelo:	HT

Pago y Envío Términos:

Cantidad de orden mínima:	1 Uds.
Precio:	USD 20-50 per pcs
Detalles de empaquetado:	Caja de madera o caja del cartón
Tiempo de entrega:	5-8 DÍAS LABORALES
Condiciones de pago:	L/C, T/T, Western Union, Paypal
Capacidad de la fuente:	100PCS/MES

Contacto

Descripción detallada del producto

Nombre del producto:	WS85 Placa de pantalla de poliuretano de estructura (material MDI + superficie antibloqueo)	Palabras clave:	Panel de pantalla de PU, panel de pantalla de deshidratación, WS85
Espesor:	20 mm, 30 mm, 40 mm	Material:	Poliuretano (PU)
color:	Naranja, Rojo, Verde, Amarillo	Solicitud:	Cribado de canteras‌
Venta de la unidad:	Artículo único	Paquete:	cartón o caja de madera
Resaltar:	ws85 polyurethane screen mesh , ws85 polyurethane screen panels , mdi material polyurethane screen mesh

WS85 Structure Polyurethane Screen Plate (MDI Material + Anti-Blocking Surface)

1)Description‌ of WS85 Structure Polyurethane Screen Plate (MDI Material + Anti-Blocking Surface)

New Multi - Size Linear Vibrating Mining Screen

Introducing our New Multi - Size Linear Vibrating Mining Screen, equipped with dewatering PU screens. This innovative screen comes with a polyurethane mesh that offers excellent performance. The WS85 - type polyurethane screen is highly flexible and elastic, perfect for aggregate and mining applications. With a modular design, it allows for easy customization of aperture shapes and sizes. The screen is not only efficient in screening but also in dewatering, and it comes with a 6 - month warranty, giving you peace of mind regarding its quality and durability.

Polyurethane Screen Plate WS85 Type

The Polyurethane Screen Plate WS85 Type is a versatile solution for aggregate and mining operations. Its elastic and flexible polyurethane construction makes it adaptable to various screening requirements. The high - quality MDI material used ensures high wear resistance, enabling it to withstand the rigors of continuous use in mining environments. Whether it's for linear vibrating sieves or other screening equipment, this screen plate offers efficient anti - blocking performance. Its durable anti - abrasive properties make it a reliable component for long - term, high - efficiency screening processes.

2) Key Features & Benefits of WS85 Structure Polyurethane Screen Plate (MDI Material + Anti-Blocking Surface)

✅ Durability:	8–10x lifespan vs. steel, anti-abrasion, tear-resistant.
✅ Efficiency:	Self-cleaning, anti-clogging, 30% energy saving.
✅ Customization:	Aperture sizes (0.1–170mm), shapes, modular compatibility.
✅ Certified:	Flame-retardant, non-toxic, ISO-compliant.

3) Specification of WS85 Structure Polyurethane Screen Plate (MDI Material + Anti-Blocking Surface)

Material	steel frame and polyurethane surface
Feature	WS85,Wear-resistant, efficient and easy to install
Thickness	30mm, 40mm, 50mm
Opening size	Slot Width 0.1mm – 2.5mm
Screen Width	305mm, 500mm and 515mm, others can be designed.
Screen length	305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed.
Connection type	WS85
Application	* Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste.

4) Images of Polyurethane Dewatering Screen Panel include:

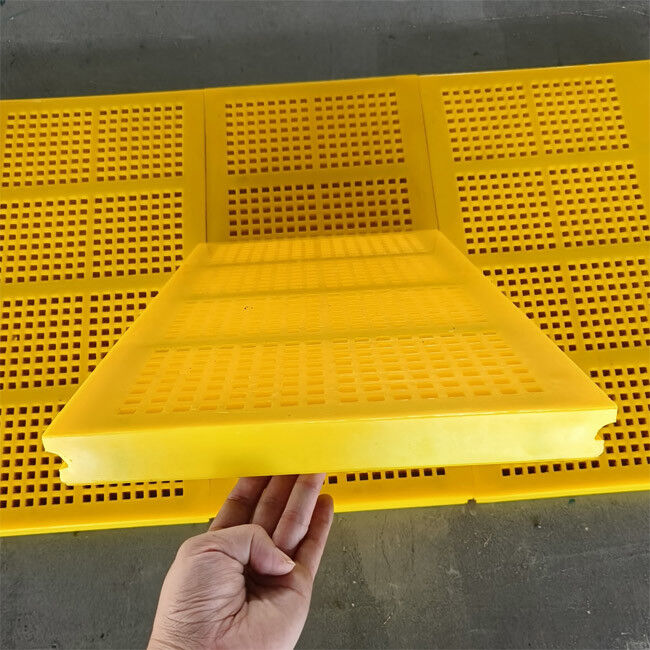

A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :

WS85 Structure Polyurethane Screen Mesh Plate MDI Material + Anti Blocking Surface 0

5) Working Processing of Polyurethane Dewatering Screen Panel

WS85 Structure Polyurethane Screen Mesh Plate MDI Material + Anti Blocking Surface 4

6). Packaging & Logistics: Wooden box package.

WS85 Structure Polyurethane Screen Mesh Plate MDI Material + Anti Blocking Surface 5

7) Application of Polyurethane Dewatering Screen Panel

WS85 Structure Polyurethane Screen Mesh Plate MDI Material + Anti Blocking Surface 6
