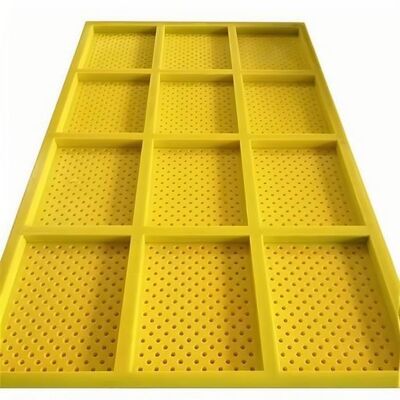

30mm Polyurethane Tensioned Screen Mat for Mining Ore Classification

Ampliación de imagen : 30mm Polyurethane Tensioned Screen Mat for Mining Ore Classification

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	CHINA HUATAO
Certificación:	ISO9001,CE,SGS etc.
Número de modelo:	HT

Pago y Envío Términos:

Cantidad de orden mínima:	1 Uds.
Precio:	USD 20-50 per pcs
Detalles de empaquetado:	Caja de madera o caja del cartón
Tiempo de entrega:	5-8 DÍAS LABORALES
Condiciones de pago:	LC, T/T, Western Union, Paypal
Capacidad de la fuente:	100PCS/MES

Contacto

Descripción detallada del producto

Nombre del producto:	Alfombra de pantalla tensada de poliuretano de grosor amarillo de 30 mm para clasificación minera de	Palabras clave:	Panel de pantalla de PU, estera de pantalla de poliuretano, criba minera
Diámetro del alambre:	- ¿Qué es eso?1.5 mm	Cuadrícula:	Min.2 mm
color:	Naranja, Rojo, Verde, Amarillo	Solicitud:	Evaluación del material.
Durabilidad:	Alta resistencia al desgaste‌	Paquete:	cartón o caja de madera
Resaltar:	30mm polyurethane screen mat , mining ore classification screen , tensioned polyurethane screen panel

30mm Polyurethane Tensioned Screen Mat for Mining Ore Classification

Yellow 30mm Thickness Polyurethane Tensioned Screen Mat for Mining Ore Classification

Polyurethane Dewatering Screen panels are used to restrict flow of material and reduce bed depth to assist in the dewatering of screen material. These panels also provide a ramp which helps maximize screen washing capabilities.

At its core, the 30mm thickness offers a robust structural foundation, striking an optimal balance between flexibility and resilience. This dimension ensures the mat can withstand the constant impact of heavy, jagged materials—such as iron ore, coal, limestone, and gravel—without succumbing to premature wear or tearing. Unlike traditional steel or rubber screens, the polyurethane material exhibits superior abrasion resistance, extending service life by up to 3-5 times in high-wear applications. This longevity directly translates to reduced downtime for replacements, lower maintenance costs, and enhanced operational continuity for mining operations.

Key Advantages

Polyurethane material is more abrasion resistant
5-8 times longer service life than woven wire mesh in wet screening
Self-cleaning holes reduce pegging and blinding
Wide-range apertures suit most applications
Various panel sizes suit all types of vibrating screens
Different connection types for easy installation and replacement
High screening performance
Low noise

This engineered design extends wear resistance by 3-5x compared to uncoated steel meshes while maintaining screening precision through secondary vibration adaptability. The result is sustained operational efficiency with minimized downtime and lifecycle costs.

Specifications

Parameter	Specification
Material	Polyurethane material and embedded steel frame
Thickness	30mm-60mm
Hole type	Square, rectangular, round etc
Hole size	3 -50mm
Installation Type	Steel plants, mining industry, cement plants, mineral beneficiation industry, power plants, coal washing, sand & gravel screening.

Why Choose HUATAO?

HUATAO's engineering team customizes PU screens for specific material characteristics, with ISO 14001-certified production. Standard configurations ship in 25 days, with expedited options available. Our quality control exceeds industry standards, ensuring reliable performance in your processing plant.

Hole Types

Square

Rectangular

Round

Working Process

Packaging & Logistics

Wooden box package.

Applications
