Paper Making Machine Parts - PE Cover for Paper Machine Suction Box

China HUATAO LOVER LTD certificaciones
China HUATAO LOVER LTD certificaciones
¡La compañía de Huatao es una compañía muy buena, yo está muy dispuesta a cooperar con usted, caja fuerte, eficiente, profesional, honesto, feliz! Gracias por proveer de mí servicio estable y productos. -----EUROPAT

—— EUROPT INDUSTRIAL

Estoy en línea para chatear ahora

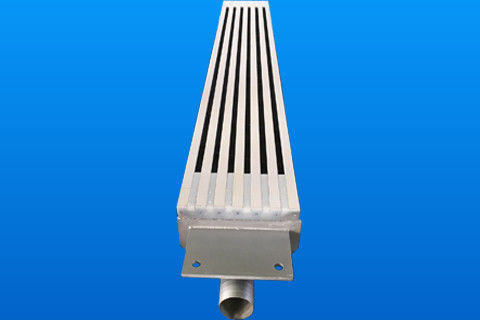

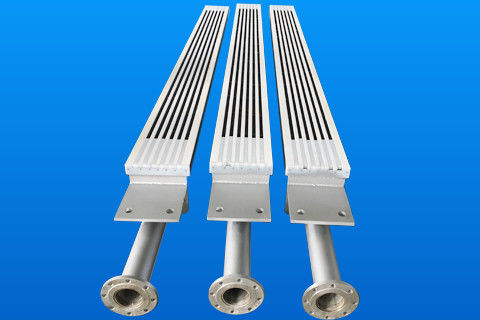

Paper Making Machine Parts - PE Cover for Paper Machine Suction Box

Paper Making Machine Parts - PE Cover for Paper Machine Suction Box
Paper Making Machine Parts - PE Cover for Paper Machine Suction Box Paper Making Machine Parts - PE Cover for Paper Machine Suction Box

Ampliación de imagen :  Paper Making Machine Parts - PE Cover for Paper Machine Suction Box

Datos del producto:
Lugar de origen: China
Nombre de la marca: Huatao
Número de modelo: HT - CUBIERTA DE CAJA DE SUCCIÓN
Pago y Envío Términos:
Cantidad de orden mínima: 1 set
Precio: Price accept negotiation
Detalles de empaquetado: paquete estándar de la exportación
Tiempo de entrega: 25 días
Condiciones de pago: L/C, T/T, Western Union, MoneyGram
Capacidad de la fuente: 500 toneladas por mes
Descripción detallada del producto
Materiales: PE Aplicación: Fabricación de papel
Nombre del producto: cubierta de caja de succión Origen: China
Resaltar:

Cubierta de PE para máquina de papel

,

piezas de caja de succión para máquina de papel

,

cubierta de PE para caja de succión

Paper Making Machine Parts - PE Cover for Paper Machine Suction Box



UHMWPE(Ultra-high Molecular Weight Polyethylene) wear resistance dewater element is used for paper manufacturing machinery. Dewater element component includes: suction box covers, Doctor blade,Forming board,Scraper blade and so on. UHMWPE had used in parts of paper manufacturing machinery widely.



Advantage

1.Improve the service life of machinery after using UHMWPE dewater element.
2.Reduce the energy consumption of paper machinery.
3.UHMWPE has highly wear resistance, improving the service life and reducing the cost.
4.Abosn’s suction box covers and blades are made of UHMW-PE material .
Abosn’s dewatering elements in ultra high molecular weight polyethylene set themselves apart by the special sinter press procedure over a long period used to produce them;
5.As well as an extremely high molecular weight plus their extra additive that is specifically tailored to paper machines.
6.All these benefits ensure what is an outstanding service life for plastic coupled with a low coefficient of friction.
7.No adhesion Excellent chemical resistance.
8.Suction box covers, Forming boards, Foil covers, Doctor Blades, Scraper blades , Deflector blades, Profile strips etc.



Technical Parameters



Property Unit Value
Density g/cm3 0.93-0.96
Average molecular weight g/mol 3million- 10 million
Tensile strength (23°C in air) MPa 22
Breaking strength MPa 42
Tensile strain at break % 600
Charpy impact strength (notched) mJ/mm2 No break
Ball indentation hardness N/mm2 42
Shore D hardness -- 65-70
Abrasion % 70-80, steel = 100
Static Friction Coefficient -- ≤0.16
Kinetic Friction Coefficient -- ≤0.10
Water Absorption -- NIL
Elongation at break at 23 degress % ≥300
Temperature resistance °C -269 to +85
Melt Temperature °C 130-140



Paper Making Machine Parts - PE Cover for Paper Machine Suction Box 0  Paper Making Machine Parts - PE Cover for Paper Machine Suction Box 1
