135 Celsius Degree Resistant SCE MDO Stretching Roller with Out of Roundness <0.05mm and Cylindricity <0.05mm

China HUATAO LOVER LTD certificaciones
China HUATAO LOVER LTD certificaciones
¡La compañía de Huatao es una compañía muy buena, yo está muy dispuesta a cooperar con usted, caja fuerte, eficiente, profesional, honesto, feliz! Gracias por proveer de mí servicio estable y productos. -----EUROPAT

—— EUROPT INDUSTRIAL

Estoy en línea para chatear ahora

135 Celsius Degree Resistant SCE MDO Stretching Roller with Out of Roundness <0.05mm and Cylindricity <0.05mm

135 Celsius Degree Resistant SCE MDO Stretching Roller with Out of Roundness <0.05mm and Cylindricity <0.05mm

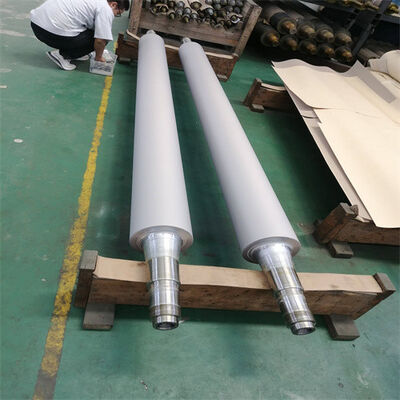

Ampliación de imagen :  135 Celsius Degree Resistant SCE MDO Stretching Roller with Out of Roundness <0.05mm and Cylindricity <0.05mm

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: HUATAO
Certificación: ISO
Número de modelo: Se aplican las siguientes condiciones:
Pago y Envío Términos:
Cantidad de orden mínima: 1 unidad
Precio: 2000USD/pc-5000USD/pc
Detalles de empaquetado: caja de madera
Tiempo de entrega: 5-8 semanas
Condiciones de pago: LC, T/T, Unión Occidental
Capacidad de la fuente: 50 pcs/mes
Descripción detallada del producto
Nombre del producto: SCE MDO Roller de estiramiento resistente a 135 grados centígrados 700MPM Palabras clave: MDO Roller de estiramiento, SCE MDO Roller de estiramiento
Disco/eje: Arcos y discos laterales encogidos y soldados de Q345B Método de calentamiento: Rolleras calentadas con aceite
caparazón: Construcción de doble caparazón Fuera de redondez: < 0,05 mm
Revestimiento de superficie: Teflok / cerámica / cromo / carburo de tungsteno / recubrimiento de aleación SCE Clasificación de las unidades: < 0,05 mm
Resaltar:

rodillo industrial resistente a altas temperaturas

,

rodillo de estiramiento de precisión SCE MDO

,

rodillo industrial con baja excentricidad

135 Celsius Degree Resistant SCE MDO Stretching Roller 700MPM
SCE MDO Stretching Roller Description:
SCE MDO stretching Rollers are specially designed for 2-gap, 3-gap and multi-gap stretching which is suitable for high speed, high temperature and super thin bi-oriented film (BOPP/BOPET/BOPA). Normally the stretching ratio of the stretching roller is from 3.2-3.5, while SCE our stretching roller's ratio can arrive at 4.0 with 1 year warranty.
SCE MDO Stretching Roller Parameters:
Component Specification
Shell Double-shell construction
Disc/Shaft Shrinked and welded shafts and side discs from Q345B
Flow-system Flow channels between inner and outer tube separated with welded leading spirals
Surface coating Teflok / ceramic / chroming / tungsten carbide/SCE alloy
SCE MDO Stretching Roller Features:
  • Design: Multiple rollers arranged in specific configuration to achieve desired stretching ratio and film properties
  • Roller Adjustability: Can be adjusted to accommodate different film thicknesses and stretching ratios
  • Cooling Capability: Cooling mechanisms to rapidly cool down film after stretching
  • Roller Surface: Engineered to provide necessary grip and traction during stretching process
  • Heating Capability: Some rollers equipped with heating elements for better stretching
  • Improved Film Properties: Enhances tensile strength, stiffness, shrink properties, gloss, and transparency

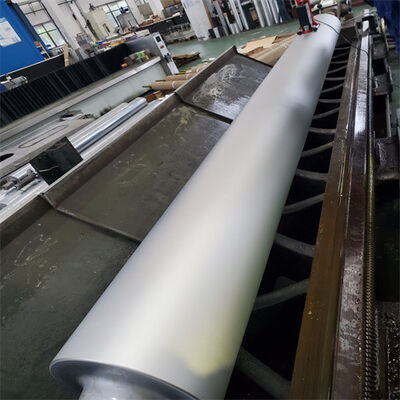

135 Celsius Degree Resistant SCE MDO Stretching Roller with Out of Roundness <0.05mm and Cylindricity <0.05mm 0
About Huatao Group

Founded in 2008, Huatao Group is a professional and leading supplier of various rollers for paper, corrugated board, rubber & plastic industry, and nonwoven fabric industries with over 15 years of experience.

Our Product Range:
  • Paper Industry: Forming roller, vacuum couch roller, dandy roller, breast roller, press roller, stone roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller, spreader roller, embossing roller
  • Plastic & Rubber: Chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller, induction heating embossing roller, induction heating calender roller, godget roller
  • Nonwoven Fabric: Cylinder roller, doffer roller, carbon fiber guide roller, embossing roller, cooling roller, spreader roller

With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry. Our products have been exported to more than 96 countries and have earned an excellent reputation.

We understand each customer's unique requirements and match them with superior quality products from our network of domestic factories. Our goal is to ensure every customer uses HUATAO products with complete confidence, knowing our service never ends.
