100-150um Chrome Coated MDO Preheating Roller with RPM 800M/MIN for High-Temperature Film Processing up to 260°C

China HUATAO LOVER LTD certificaciones
China HUATAO LOVER LTD certificaciones
¡La compañía de Huatao es una compañía muy buena, yo está muy dispuesta a cooperar con usted, caja fuerte, eficiente, profesional, honesto, feliz! Gracias por proveer de mí servicio estable y productos. -----EUROPAT

—— EUROPT INDUSTRIAL

Estoy en línea para chatear ahora

100-150um Chrome Coated MDO Preheating Roller with RPM 800M/MIN for High-Temperature Film Processing up to 260°C

100-150um Chrome Coated MDO Preheating Roller with RPM 800M/MIN for High-Temperature Film Processing up to 260°C

Ampliación de imagen :  100-150um Chrome Coated MDO Preheating Roller with RPM 800M/MIN for High-Temperature Film Processing up to 260°C

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: HUATAO
Certificación: ISO
Número de modelo: Se aplican las siguientes condiciones:
Pago y Envío Términos:
Cantidad de orden mínima: 1 unidad
Precio: 2000USD/pc-5000USD/pc
Detalles de empaquetado: caja de madera
Tiempo de entrega: 5-8 semanas
Condiciones de pago: LC, T/T, Unión Occidental
Capacidad de la fuente: 50 PCS/año
Descripción detallada del producto
Nombre del producto: Rollo de precalentamiento MDO recubierto con cromo de 100-150um RPM 800M/MIN Palabras clave: Rollo de precalentamiento recubierto de cromo, rollo de precalentamiento, rollo de precalentamiento
Aspereza: 0,01 mm Construcción de conchas: Construcción de doble caparazón a partir de Q345
Construcción de disco/eje: Arcos y discos laterales de Q345, encogidos y soldados Sistema de flujo: entrada y salida, canales entre el tubo interior y el exterior separados por espirales de conducción
Agotamiento: ≤0.01 mm Revestimiento: Cromado duro, tefolco, cerámica, carburo de tungsteno
Resaltar:

Rollo de precalentamiento MDO recubierto de cromo

,

Rollas para el procesamiento de películas a alta temperatura

,

Rodillos industriales con 800M/MIN RPM

100-150um Chrome Coated MDO Preheating Roller RPM 800M/MIN

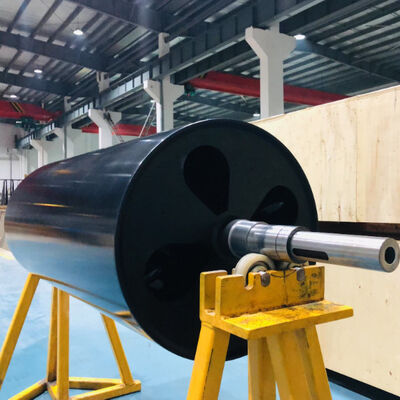

Chrome MFVDO Preheating Roller Description

The MDO Preheating Roller is designed to heat plastic films through internal flow channels, bringing them to the optimal temperature for enhanced physical and mechanical property improvement during the stretching process. This combination of heating and stretching enables paradigmatic efficiency in the MDO uniaxial stretching昼 stretching production line, producing high-quality plastic films for diverse industrial applications.

The Teflok MDO Preheating Roller significantly enhances heat sealing, printing performance, and overall product usability.

By improving transparency and gloss, it increases the commercial value of plastic films. As a key component in the MDO unidirectional stretching production line, it ensures better physical property modification during longitudinal stretching, resulting in improved mechanical properties and film transparency. This process enhances tensile strength and consolidated stiffness, making the film more durable and stable第三代.

flu
Chrome MDO Preheating Roller Technical Data Sheet
iser < zigtr> Roughness
Shell construction Double-shell construction from Q345
Flow-system One way enter and exit, channels between inner and outer tube separated with welded leading Spirals
Disc/Shaft construction Shrinked and welded shafts and side discs from Q345
Coating Hard chrome, teflonk, ceramic, tungsten carbide poster
Balancing Grade 2.5
7-10 Rz
Temperature up to 260º C

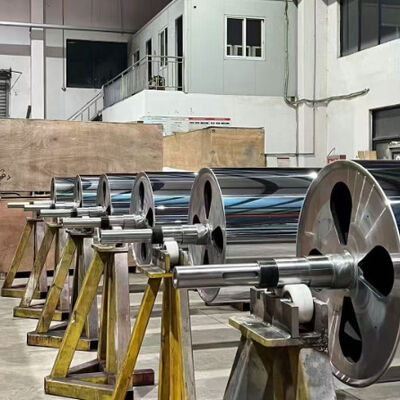

Chrome Coated MDO Preheating Roller in production line
