Hard Chrome Plated Pre-heater Cylinder with Rotary Design for Equal Heating and Steam Rotary Joint

Hard Chrome Plated Pre-heater Cylinder with Rotary Design for Equal Heating and Steam Rotary Joint
Hard Chrome Plated Pre-heater Cylinder with Rotary Design for Equal Heating and Steam Rotary Joint

Ampliación de imagen :  Hard Chrome Plated Pre-heater Cylinder with Rotary Design for Equal Heating and Steam Rotary Joint

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: HUATAO
Certificación: ISO
Número de modelo: El valor de las emisiones de CO2 es el valor de las emisiones de CO2 de los combustibles renovables.
Pago y Envío Términos:
Cantidad de orden mínima: 1 unidad
Precio: 2000USD/pc-5000USD/pc
Detalles de empaquetado: caja de madera
Tiempo de entrega: 5-8 semanas
Condiciones de pago: LC, T/T, Unión Occidental
Capacidad de la fuente: 100 pcs/mes
Descripción detallada del producto
Nombre del producto: El cilindro de precalentador de cromo duro de línea corrugada hace que el calentamiento sea igual Palabras clave: Rollo de calefacción, cilindro de precalentador, máquina de precalentador
Diámetro: Se aplicarán las siguientes medidas: Ancho Disponible: 1600-2500 mm
Superficie: Acero y acerolado Rango de ajuste: 60 a 270 grados
Velocidad del cartón: Hasta 600 m/min Código HS: 84399900
Resaltar:

cilindro de precalentador con cromo duro

,

con una longitud de más de 20 mm

,

industrial roller with rotary design

Corrugated Line Hard Chrome Preheater Machine Cylinder Makes Heating Equal

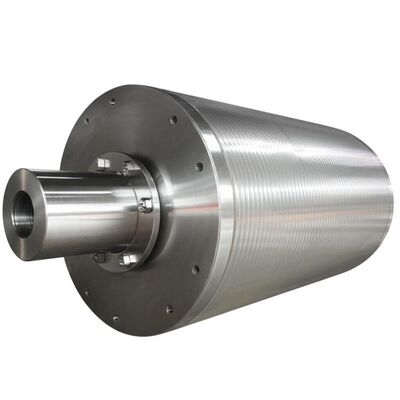

Pre-heater Cylinder Description

Pre-heater available breadth: 1600-2500mm

  • Pre-heater diameter: 1000mm/1100mm/1200mm with butterfly head for equal heating distribution
  • Rotary design at fixed speed ensures uniform surface temperature, complete heat transfer to paper, reduced heat loss, and minimized paper breakage
  • Flange included for steam rotary joint connection
  • Manufactured to national standard of pressure container I with included test certificate
  • Paper guide roll: φ140mm, three fixed and three adjustable travel rolls outside preheating roll to control heating surface, with adjustable parallelism
  • Equipped with 0.55kw/0.75kw motor and 6 sets of worm wheel decelerator
Width (mm) Dimension (L*W*H mm) Weight (T) Gross Power (kW)
1400 2590 * 1050 * 3910 6.6 6.15
1600 2790 * 1050 * 3910 7.2 6.15
1800 2990 * 1050 * 3910 7.8 6.15
2000 3190 * 1050 * 3910 8.4 6.15
2200 3390 * 1050 * 3910 9 6.75
Hard Chrome Plated Pre-heater Cylinder with Rotary Design for Equal Heating and Steam Rotary Joint 0
About Huatao Group

Founded in 2008, Huatao Group is a professional supplier with over 15 years of experience manufacturing rollers for various industries:

Paper Industry

Forming rollers, vacuum couch rollers, dandy rollers, breast rollers, rubber press rollers, stone press rollers, dryer cylinders, size press rollers, calender rollers, pope reel rollers, spreader rollers, and embossing rollers.

Plastic & Rubber Industry

Chill rollers, MDO preheating rollers, MDO nip rollers, MDO stretching rollers, PRS cooling rollers, corona treatment rollers, flame treatment rollers, CFRP contact rollers, tension rollers, nip rollers, winding cores, coating drums, cooling drums, spreader rollers, anilox rollers, calender rollers, and embossing rollers.

Nonwoven Fabric Industry

Cylinder rollers, doffer rollers, CFRP guide rollers, embossing rollers, cooling rollers, and spreader rollers.

With a strong commitment to innovation and reliability, Huatao Group has become a trusted provider with products exported to over 96 countries. We understand unique customer requirements and match them with the appropriate domestic factory capabilities to ensure superior quality solutions.

Our goal is for every customer to purchase and use Huatao products with complete confidence, knowing our service commitment never ends.
